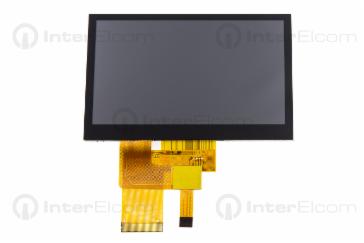

LCD display TFT 4.3", RGB 480x272px, 3.3V, 12:00, 400cd/m², touch panel (capacitive);
| Product type | TFT LCD Display |
|---|---|
| Screen diagonal | 4.3" |
| Resolution | 480x272px |
| Matrix type | TN |
| Communication interface | RGB |
| Touch panel | capacitive |
| Touch panel color | black |
| Brightness | 400cd/m² |
| Viewing angles | 65 ° / 45 ° / 65 ° / 65 ° |
| Display controller | ST7282 |
| Tape mounting | to the FPC connector |
| Supply voltage | 3.3V |
| Orientation | 12:00 |
| Has PCB | not |
| Operating temperature | -20 ÷ 70 ° C |
| Dimension | 105.5x67.2x4.475mm |
| Touch panel controller | FT5436 |
| Tolerance | -30 ÷ 80 ° C |
| Dimensions with touch panel | 105.50x67.20x4.75mm |
