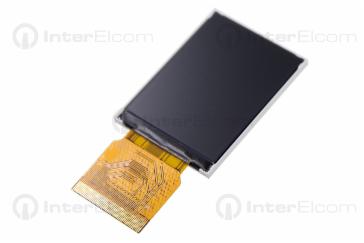

| Trade name | IE-A-0406CV02S-00-1 IE-A-0406CV02S-00-1 |
|---|---|
| SEO - Title | TFT LCD Display 2.0", RGB 240x320px | InterElcom Wide Offer Wyświetlacz LCD TFT 2,0", RGB 240x320px | Szeroka Oferta InterElcom |
| SEO - Focus | Display 240x320px Wyświetlacz 240x320px |
| PA fields | pa_interfejs-komunikacyjny-tft|pa_interfejs-komunikacyjny-tft|pa_jasnosc|pa_katy-widzenia|pa_montaz-tasmy-dla-monochroma|pa_napiecie-zasilania-mono|pa_orientacja|pa_posiada-pcb-mono|pa_przekatna-ekranu|pa_rozdzielczosc-tft|pa_sterownik-wyswietlacza|pa_temperatura-pracy|pa_temperatura-pracy-tft|pa_temperatura-przech|pa_typ-matrycy|pa_wymiar |
| Product type | TFT LCD display |
| Screen diagonal | 2.00" |
| Resolution | 320x240px |
| Matrix type | IPS |
| Communication interface | 8080 |
| The color of the touch panel | white |
| Brightness | 250cd/m² |
| Viewing angles | 80 ° / 80 ° / 80 ° / 80 ° |
| Display driver | st7789-0v-1690271 |
| Tape assembly | to the FPC connector |
| Supply voltage | 3.3V |
| Orientation | full |
| Has PCB | not |
| Working temperature | -20 ÷ 70 ° C |
| Dimension | 35.60x48.20x2.4mm |
| Storage temperature | -30 ÷ 80 ° C |
