IE-S-2732CH07S-CB-1

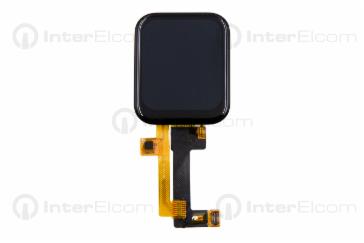

LCD display TFT 1.69", RGB 280x240px, 3.1V, IPS, 500cd/m², CST816S, SPI interface, touch panel (capacitive), with frame dimensions 34.20x41.04mm;

Symbol:0008758
Add a product to your list and send a request for quotation.
-
pcs.
+
Szczegółowe dane produktu
Product type TFT LCD display
Screen diagonal 1.69"
Resolution 240x240px
Matrix type IPS
Communication interface SLEEPS
Touch panel capacitive
Brightness 500cd/m²
Viewing angles 85 ° / 85 ° / 85 ° / 85 °
Display driver ST7789V
Tape assembly to the FPC connector
Supply voltage 2.9 - 3.1V
Orientation full
Working temperature -20 ÷ 70 ° C
Dimension 34.20x41.04x3.59mm
Storage temperature -30 ÷ 80 ° C
