IE-S-2531CS02S-CB-1

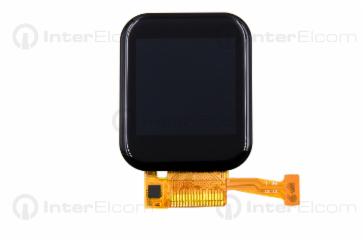

LCD TFT 1.3", RGB 240x240px, 2.9-3.1V, IPS, 300cd/m², CST816S, SPI interface, with touch (capacitive) panel, with 38.90x31.90mm bezel;
Symbol:0008595
Add a product to your list and send a request for quotation.
-
pcs.
+
Szczegółowe dane produktu
Product type TFT LCD display
Screen diagonal 1,30"
Resolution 240x240px
Matrix type IPS
Communication interface parallel 8 bit
Touch panel capacitive
Brightness 300cd/m²
Viewing angles 80 ° / 80 ° / 80 ° / 80 °
Display driver ST7789V3
Tape assembly to the FPC connector
Supply voltage 2.9 - 3.1V
Orientation full
Working temperature -20 ÷ 70 ° C
Dimension 31.90x38.90x1.90mm
Touch panel driver CST816S
Storage temperature -30 ÷ 80 ° C
