| Product type | Machine |
|---|---|
| Model | IE-CS03 |
| Conductor cross-sections | 0.1-3.0mm²x2, AWG32-14 x 2 0.1-6mm², AWG32-10 |
| Cutting Length Tolerance | 0.002 x L |
| Production Rate | 4000-9000 pcs/h |
| Memory Capacity | 100 programs |
| Power Supply | AC220V, 50/60Hz |
| Air Supply | 0.4-0.7MPa (clean and dry compressed air) |
| Dimensions(LxWcH) | 500x630x350mm |
| Weight | 35kg |
| Certificates | CE |

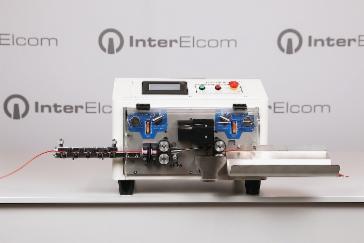

| Description | Machine for cutting and stripping single-core cables with a cross-section of up to 6 mm2 (set) |
