| Trade name | IE-S-2624CV04MP-00-1 |
|---|---|
| SEO - Title | IE-S-2624CV04MP TFT 5,5" IPS MIPI | 0008596 |
| SEO - Focus | LCD IPS 5,5" MIPI 0008596 |

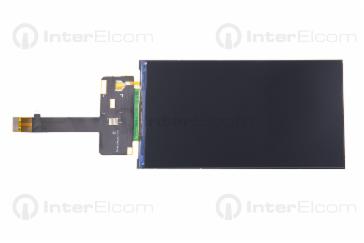

| Product type | TFT LCD display |
| Screen diagonal | 5,50" |
| Resolution | 1080x1920px |
| Matrix type | IPS |
| Communication interface | MIPI |
| Brightness | 400cd/m² |
| Display driver | HX8399C |
| Tape assembly | to the FPC connector |
| Supply voltage | 3.3V |
| Orientation | full |
| Working temperature | -20 ÷ 70 ° C |
| Dimension | 70.65x129.20x1.52mm |
| Storage temperature | -30 ÷ 80 ° C |
